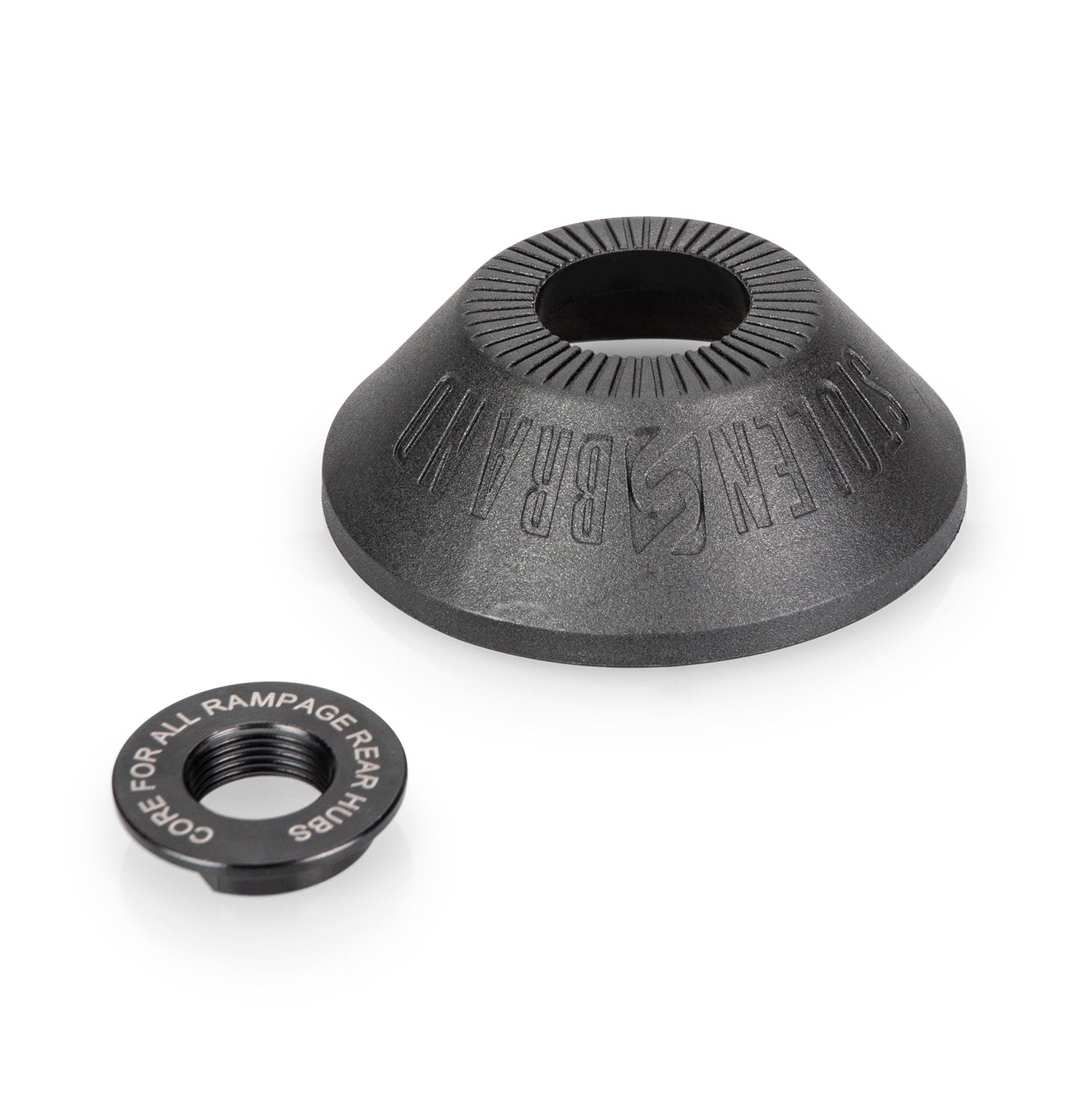

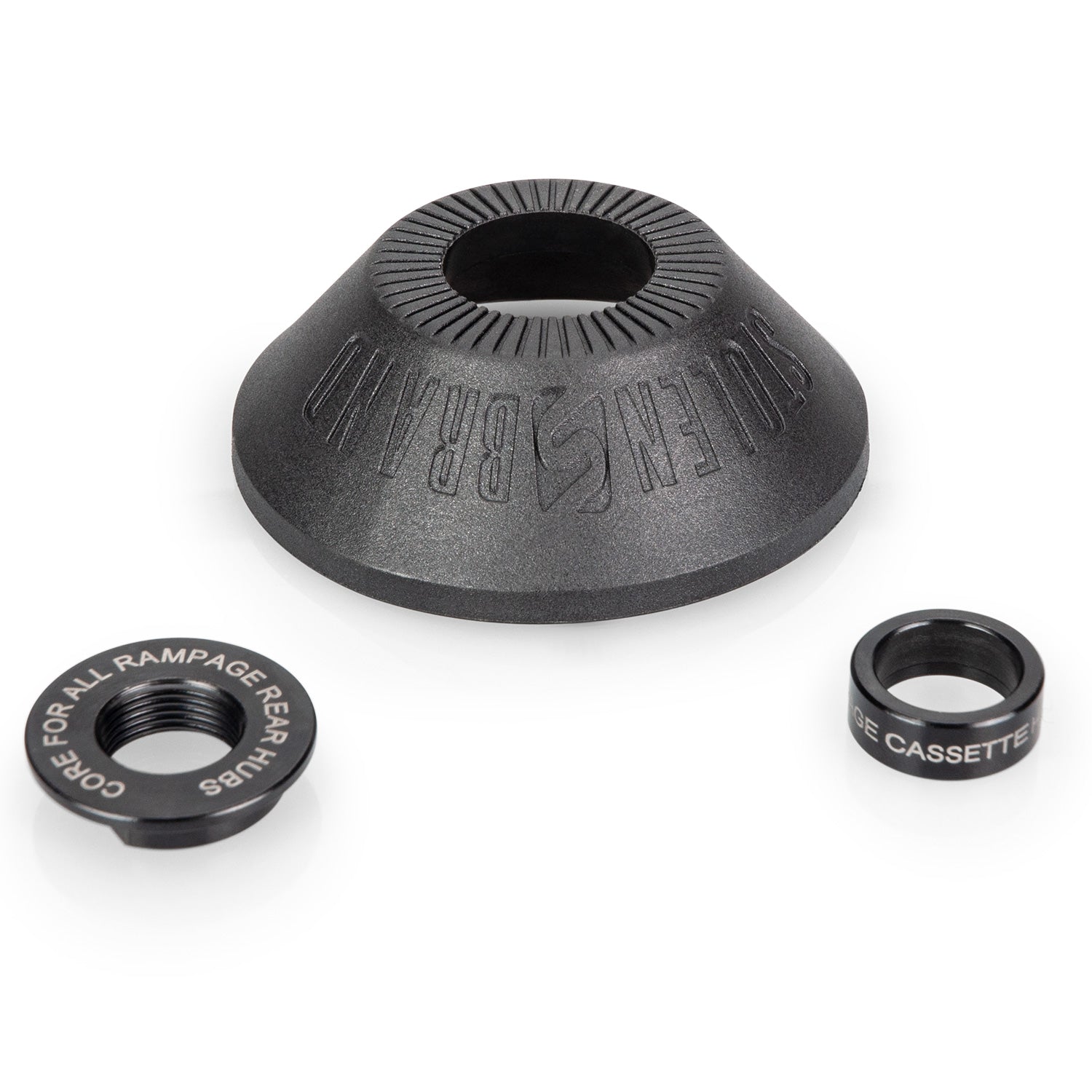

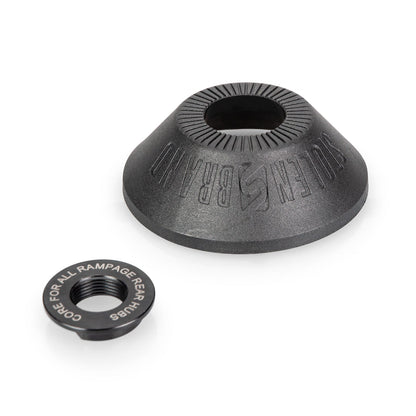

THERMALITE REAR HUB GUARDS

FEATURES: New! Our proven Thermalite material molded into a guard pressed on to a CNC machined core.  Thermalite is long lasting Nylon66 based material that is perfect for sliding and surviving high impacts. Made to fit and protect our Rampage front and rear hubs (but they fit a bunch of other hubs too).

COLORS: Black

NOTES:

RAMPAGE FC & CASSETTE REAR NON-DRIVE SIDE GUARD: Fits Rampage Freecoaster & Cassette rear hubs (including complete bike). Mounts replacing the lock nut. Fits 14mm axles, 68mm diameter.
WEIGHT: 1.4 oz

RAMPAGE FC & CASSETTE REAR DRIVE SIDE GUARD: Fits Rampage Freecoaster & Cassette rear hubs (including complete bikes). Mounts replacing the lock nut. Fits 14mm axles, XXmm diameter.
WEIGHT: X.X oz

NOTES ON INSTALLATION:

RAMPAGE FC REAR: Remove lock nut (#5), install hub guard core and tighten with wrench against lock nut (#4) until snug.  Install Thermalite guard and reinstall wheel as outlined in your owners manual.

RAMPAGE CASSETTE REAR: Remove lock nut (#6), remove spacer (#5), remove cone nut (#4), install hub guard core and tighten with wrench until snug.  Install Thermalite guard and reinstall wheel as outlined in your owners manual.
